Premium Downdraft Spray Paint Booth with Integrated Infrared Curing System

Premium Downdraft Spray Paint Booth with Integrated Infrared Curing System

Product Overview

Engineered for high-volume automotive refinishing and precision industrial coating, our Premium Downdraft Spray Paint Booth delivers an ultra-clean, dust-free environment combined with advanced thermal curing technology.

By integrating a full downdraft airflow configuration with strategically positioned shortwave infrared heating modules, this booth guarantees superior gloss levels, eliminates contamination, and slashes cycle times. Whether handling premium solvent-based coatings or modern waterborne paints, this system provides unmatched reliability, safety, and energy efficiency for professional body shops and manufacturing facilities.

Key Features & Advantages

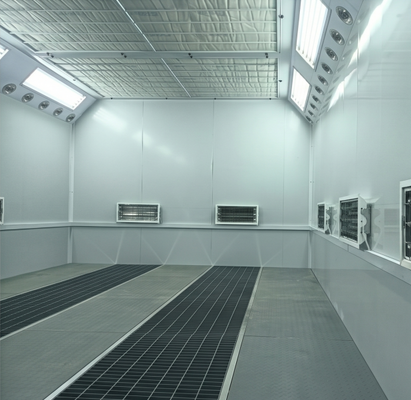

1.Advanced Full-Downdraft Airflow: Air is drawn evenly through high-density ceiling filtration media and extracted directly through heavy-duty floor grates. This top-to-bottom laminar flow swiftly evacuates overspray and keeps airborne particles away from the wet painted surfaces.

2.Accelerated Shortwave Infrared Curing: Equipped with high-performance, wall-mounted quartz infrared heating panels. Unlike traditional convection heating, shortwave infrared energy penetrates the paint layer to cure from the inside out, preventing solvent trapping, eliminating surface skinning, and reducing drying time by up to 50%.

3.Shadow-Free Precision Lighting: Features angled, high-lux ceiling light fixtures and supplementary vertical wall lighting modules. The premium glass-covered enclosures provide bright, daylight-balanced illumination, eliminating shadows and ensuring perfect color matching and defect inspection.

4.Premium Thermal Insulation Cabin: Constructed from heavy-duty, interlocking double-skinned wall panels filled with high-density flame-retardant insulation (EPS/Rockwool). This design ensures superior structural rigidity, exceptional noise reduction, and minimal heat loss during baking cycles.

5.High-Capacity Triple-Filter Filtration System: Includes a high-loft intake pre-filter, a premium sub-ceiling fine filter (EU5/F5 grade), and a progressive fiberglass floor paint-stop filter to catch overspray before air exhaust, complying with strict environmental emission standards.

6.Ergonomic Access & High Visibility: The main entrance features a robust tri-fold door system equipped with large, tempered safety glass viewing windows. A dedicated side personnel door with a quick-release pressure safety lock ensures safe and easy operator access.

Technical Specifications

Frequently Asked Questions (FAQ)

Q1: What are the primary advantages of combining a downdraft system with infrared curing lamps?
A: This combination offers the ultimate environment for a flawless finish. The full downdraft airflow continuously pulls airborne dust and overspray straight down into the floor filters, away from your paint job. Meanwhile, the shortwave infrared lamps cure the paint from the inner layers outward. This prevents "skinning" (where the surface dries first, trapping solvents underneath), minimizes the risk of pop-boiling, and cuts your overall baking time in half compared to traditional hot-air convection booths.

Q2: Can the wall-mounted infrared heating zones be controlled independently?
A: Yes. The integrated infrared heating system is segmented into multiple independent zones controllable via the main panel. For smaller panels, spot repairs, or bumper touch-ups, operators can activate only the specific heating zones required. This targeted curing significantly reduces power consumption and lowers operating costs.

Q3: Is this spray booth fully compatible with waterborne paint systems?
A: Absolutely. Waterborne paints require precise, uniform airflow and controlled thermal energy to break the water barrier efficiently. The combination of clean, high-velocity laminar downdraft air and direct, shortwave infrared radiant heat ensures exceptionally rapid water evaporation and cross-linking, making it highly effective for both solvent-based and waterborne paint lines.

Q4: What is the recommended maintenance schedule for the filter elements?

A: To maintain optimal cabin pressure and a pristine, dust-free environment, we recommend the following replacement intervals under normal operating conditions:

1.Pre-Filters (Intake Air): Every 100 working hours.

2.Ceiling Fine Filters: Every 400 to 500 working hours.

3.Floor Paint-Stop Filters (Glass Fiber): Every 80 to 100 working hours, or when visible overspray accumulation slows down the exhaust airflow.
